MVM BM650/850 Grinding Machine

Name: MVM BM650/850 Grinding Machine
Brand: Saturn Machine Knives
SKU: BM650-850
Availability: InStock

For grinding planer knives

Exclusive UK Supplier

Built to Your Requirements

Delivered Within 12 Weeks

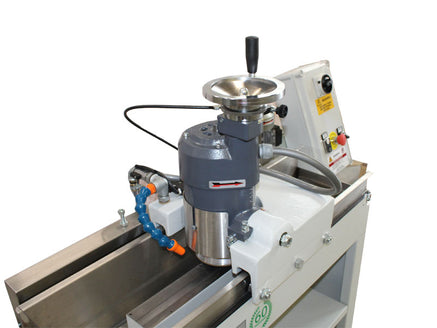

The BM series is a versatile knife grinding machine, designed for small to medium-sized blades. Available in two grinding lengths, 650mm and 850mm, the BM series offers numerous options and accessories, enabling it to sharpen a wide variety of smaller blades including:

Planer knives
Small chipper knives
Small granulator blades
Disposable blades (Tersa, Weinig, Sinus, etc.)
Profiled hard-metal (Widia) inserts

Specifications

Cast iron machine bed

Automatic downfeed grinding head with automatic stop at preset height

Tilting head to grind hollow surfaces

Carriage run guides covered with replaceable hardened steel guides

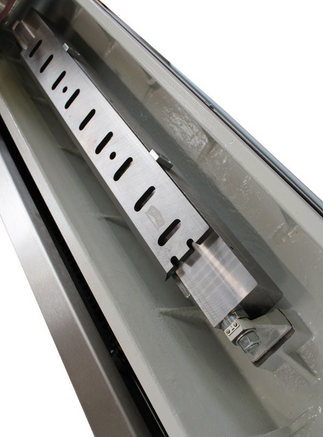

90° rotating knife-mounting chuck

Coolant pump

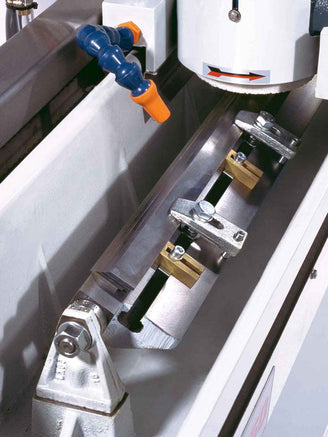

Supplied with stepped blocks to grind 4 overlapping planer blades simultaneously

Optional Extras

Base

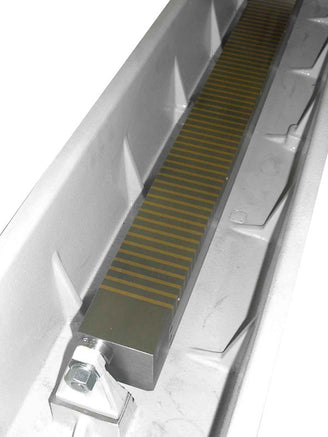

Magnetic chuck

Variable carriage speed 1–11 m/min

Two speed carriage 5.5 and 11 m/min

Edge reference bar

External tank with additional pump

0° reference chuck

Switch for run adjustment

Clamping tool for leather cutting knives

Magnetic chuck for hard metal inserts

Clamping device for Tersa, Centrofix, Terminus, Kanefusa, Sinus, Weinig knives
