MVM KX250 Grinding Machine

Name: MVM KX250 Grinding Machine
Brand: Saturn Machine Knives
SKU: KX250
Availability: InStock

High power sharpening and grinding machine

Exclusive UK Supplier

Built to Your Requirements

Delivered Within 12 Weeks

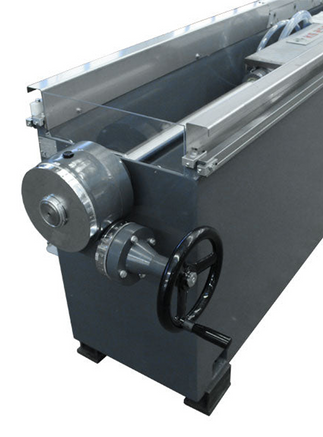

The KX 250 model grinding machine is available with grinding lengths ranging from 1000mm to 7100mm, with even longer lengths available for special grinding applications. Featuring a high-power grinding wheel motor, the KX 250 is suitable for both surface grinding and knife sharpening. It boasts a heavy-duty reinforced machine base, ensuring maximum stability, and comes standard with fully covered upper and side guides.

The KX 250 is equipped with a Siemens PLC that controls the complete grinding program and carriage movement during various stages of the working cycle. This machine is suitable for nearly all industrial straight knives, including chipper knives, granulator blades, veneer knives, guillotine blades, and paper knives, and it can also be used for surface grinding.

Specifications

Rotating magnetic chuck from -90° to +90° (Polarity 20 mm)

Angular divisor for magnetic chuck

Grinding motor 7.5 kW (10 HP)

Segment holding ring Ø250

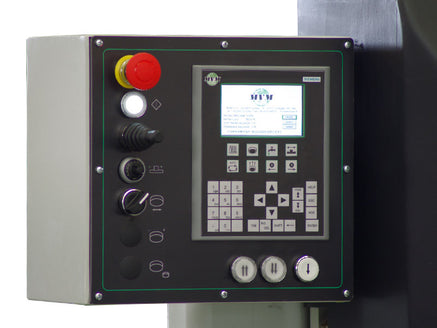

PLC Siemens SIMATIC S7-1200

Variable carriage speed from 1 to 30 m/min with carriage run adjustment controlled electronically by PLC

Automatic grinding wheel downfeed and fully programmable working cycle by means of a digital programmer (PLC)

Longitudinal grinding head angle adjustment from 0° to 3°

Grinding wheel quick up and down approach, and slow down approach

Separate coolant collection tank fitted with 80 l/min motor pump

Optional Extras

PLC Siemens Touch Screen

Grinding motor 11.2 kW (15 HP) and 18.6 kW (25 HP)

Thin polarity magnetic chuck 12/14 mm

Quick change of the grinding wheel

Variable grinding wheel speed

Slow carriage speed 0.3 m/min

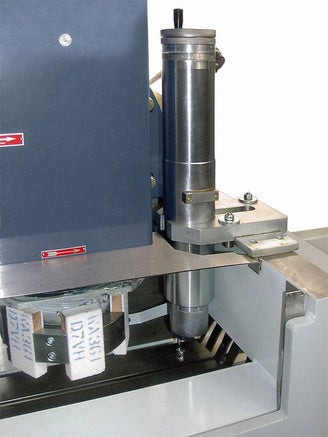

RTS Level detector – wheel wear compensation system

Automatic lubrication

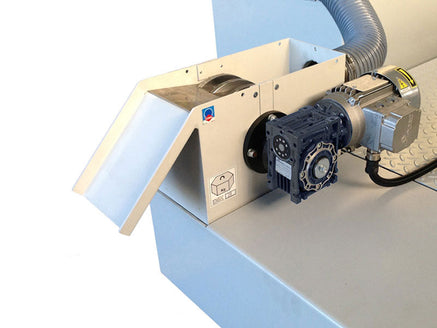

Magnetic coolant cleaner with rotating discs

Coolant cleaner with paper filter (manual or automatic)

Additional super-finishing grinding head

Additional grinding head 3.7 kW (5 HP) automatic or manual downfeed

Extraction system
