MVM SX80 Grinding Machine

Name: MVM SX80 Grinding Machine
Brand: Saturn Machine Knives
SKU: SX80
Availability: InStock

Band saw sharpening machine

Exclusive UK Supplier

Built to Your Requirements

Delivered Within 12 Weeks

The SX80 band saw blade grinding machine is designed to sharpen a variety of band saw blades, including those for wood, bimetallic blades for metals, band saw blades with hard-metal teeth, and special band blades for plastics or food. It is also capable of sharpening variable pitch band saws.

The SX80 reduces grinding times and delivers a high-quality grind, effectively lengthening the working life of band saw blades.

Specifications

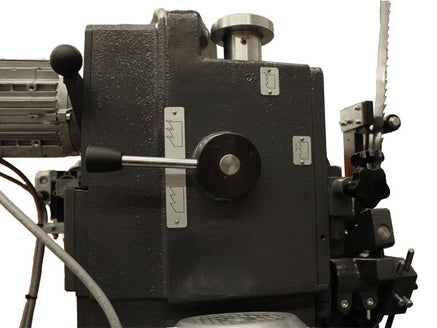

Robust cast-iron main machine housing

All gears housed in an oil bath (10 kg)

Vibration-free band saw movement

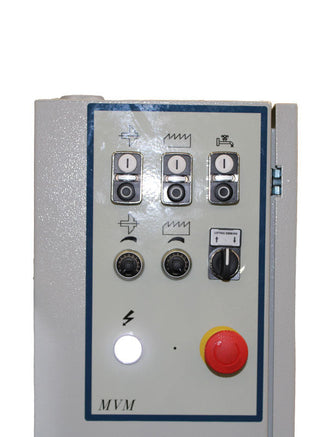

Sensitive controls for high precision adjustment

Speed regulator

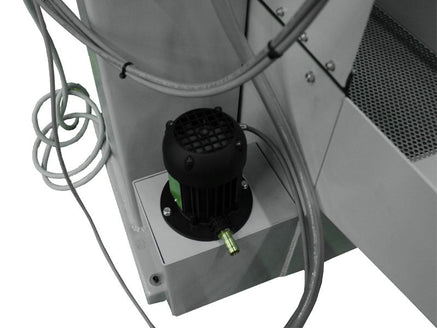

Cooling system

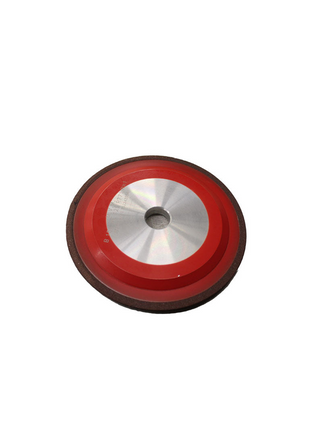

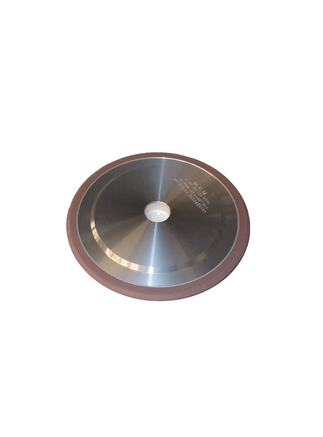

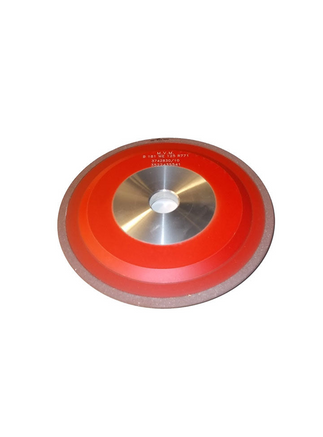

CBN grinding wheel

Optional Extras

PLC (digital programmer cycle work and motorized lifting and descent of the grinding wheel)

Grinding motor 3.7 kW (5 PS)

Magnetic chuck Ø300–350–400 mm

Electronic variable table speed 3–35 RPM

Magnetic cleaner with rotating discs and external tank

Manual or automatic paper cleaner

Protection cabin

Extraction system

Adjustable column up to 280 mm

Special column to grind discs up to Ø620 mm (LA500 only)

Special column to grind discs up to Ø820 mm (only on LA700)

LED lamp
