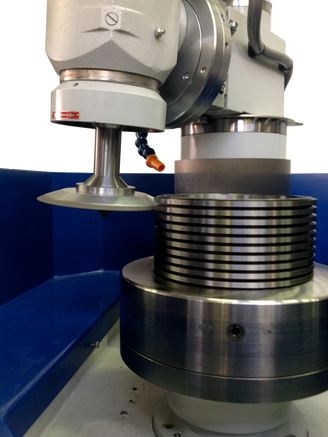

MVM LA500-700 Grinding Machine

Name: MVM LA500-700 Grinding Machine
Brand: Saturn Machine Knives
SKU: LA500-700
Availability: InStock

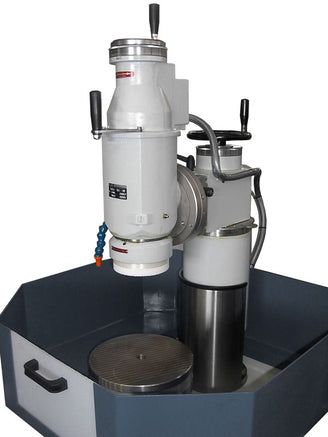

Circular knife grinding machine

Built to Your Requirements

Delivered Within 12 Weeks

Exclusive UK Supplier

Product Description:

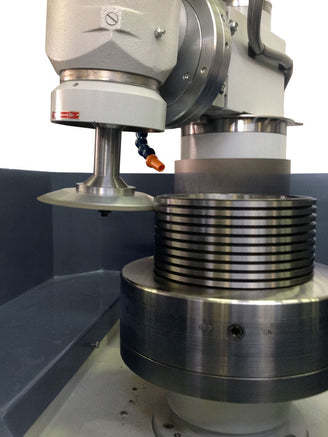

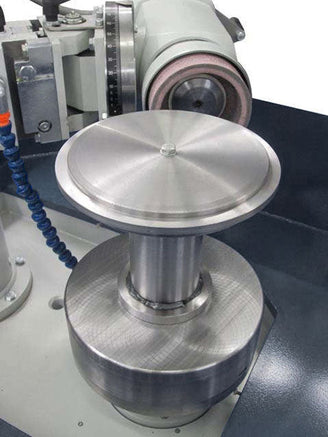

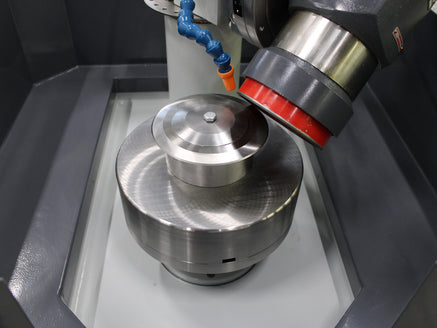

This circular knife grinding machine combines three main features: a rotating and tilting head, automatic grinding wheel downfeed, and a rotary chuck with a speed regulator. These features make it ideal for grinding beveled circular knives and blades, as well as surface grinding discs and other workpieces.

Additionally, the LA700 version is available for grinding circular blades and discs with diameters up to 700mm.

Technical Features

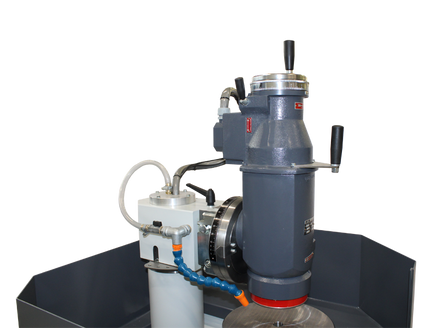

Automatic downfeed grinding head with automatic stop at preset height
Rotating head range 0°-70°, tilting 0-5° for grinding circular blades, using an easy to read vernier scale
Grinding wheel motor with clockwise and anti-clockwise rotation direction for perfect grinding of any angle

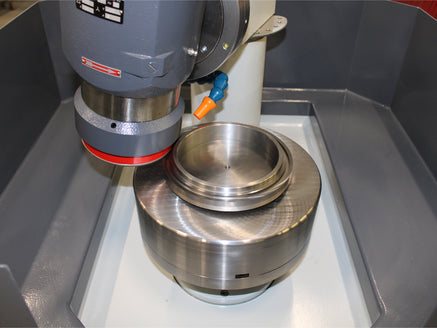

Fixed speed rotating mechanical chuck for level grinding operations
Chain driven rotating chuck

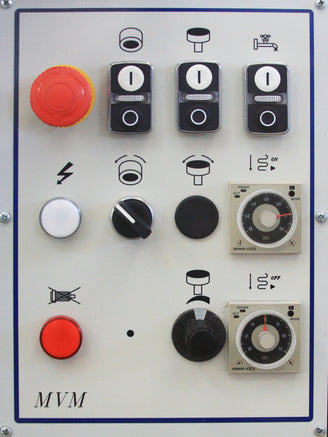

Work time controlled by timer

Optional Extras

PLC (digital programmer Cycle work and motorized lifting and descent of the grinding wheel)
Grinding motor 3,7 kW (5 PS)
Magnetic chuck Ø300-350-400 mm
Electronic variable table speed 3 - 35 RPM

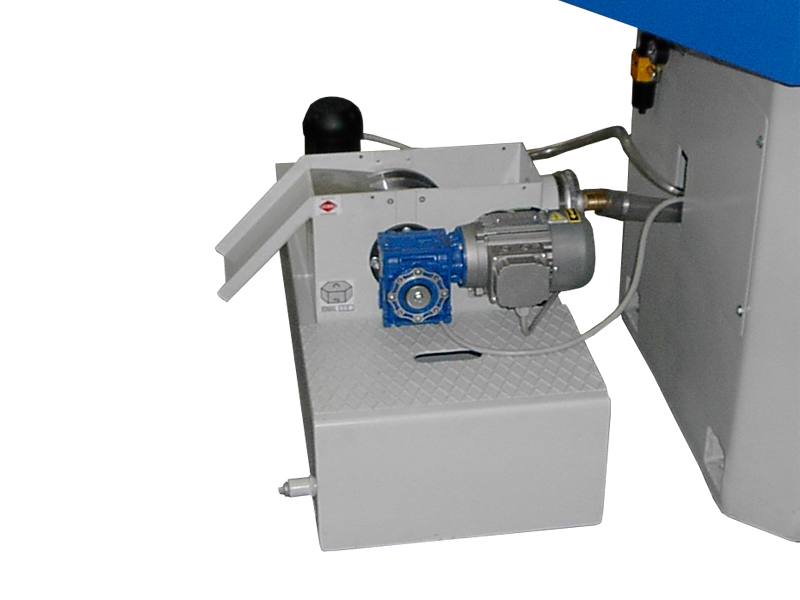

Magnetic cleaner with rotating discs and external tank
Manual or automatic paper cleaner
Protection cabin
Extraction system
Adjustable column up to 280 mm
Special column to grind discs up to Ø620 mm (LA500 only)
Special column to grind discs up to Ø820 mm (only on LA700)
LED lamp
