Programmable automatic industrial grinding machine via PLC
Exclusive UK Supplier
Built to Your Requirements
Delivered Within 12 Weeks

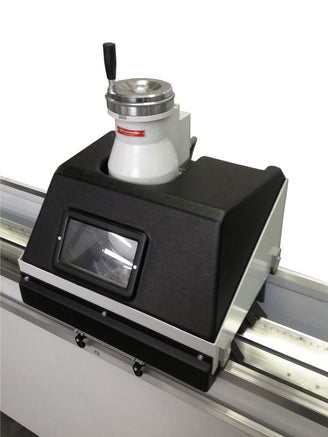

The PX model grinder is available in three versions, offering grinding lengths of 1000mm, 1350mm, and 1750mm. As the first professional model in the M.V.M. range, this knife grinding machine is designed for a wide range of industrial knife grinding and sharpening applications.
Specifications
| Mini-PLC controlling automatic downfeed, spark-out and downfeed right or left and right |

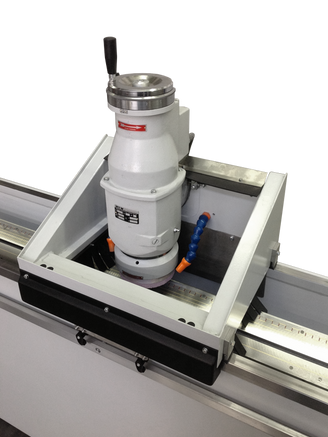

| Heavy duty grinding motor 2.2 kW (3 HP) - 2800 RPM |

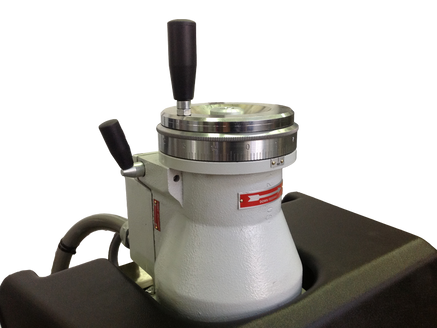

| Tilting head to grind hollow surfaces |
| Carriage run guides covered with replaceable hardened steel guides |

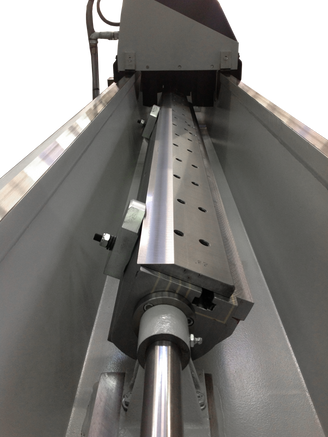

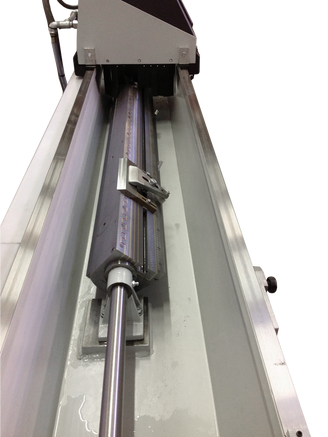

| 90° rotating knife-mounting chuck |
| Supplied with stepped blocks to grind 4 overlapping planer blades simultaneously |
| Variable carriage speed 2–18 m/min |
| External tank with coolant pump |
| Carriage guides covered with protective rubber bellows |
| Switch for carriage run adjustment |
Optional Extras
| PLC Siemens |
| Magnetic chuck (standard on PX 1350) |
| Grinding motor 3.7 kW (5 HP) |
| Protection bellows |
| Edge reference bar |

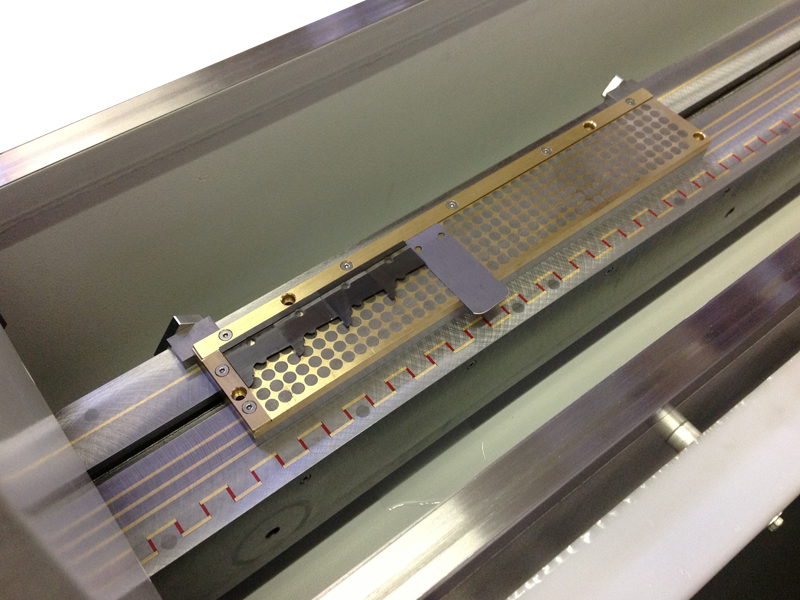

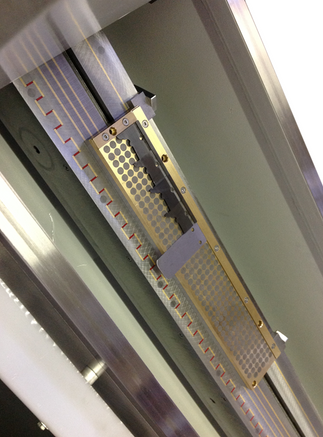

| Magnetic chuck for hard metal inserts |
| Clamping device for Tersa, Centrofix, Terminus, Kanefusa, Sinus, Weinig knives |
| Magnetic coolant cleaner with rotating discs |
