MVM MX150 Grinding Machine

For heavy duty knife grinding

The heavy duty MX 150 knife grinder comes in seven distinct models, differentiated by their working lengths of 1000 mm, 1500 mm, 2000 mm, 2500 mm, 3000 mm, 3500 mm, and 4500 mm, respectively.

It now includes a mini-PLC as a standard feature.

Designed for versatility, the MX 150 can accommodate various types of industrial blades, including chipper knives, blades for granulators, veneer knives, and knives for cutting paper.

Built to Your Requirements

Delivered Within 12 Weeks

Exclusive UK Supplier

Contact us for more details:

DOWNLOAD BROCHURE
Technical Features

Technical Features

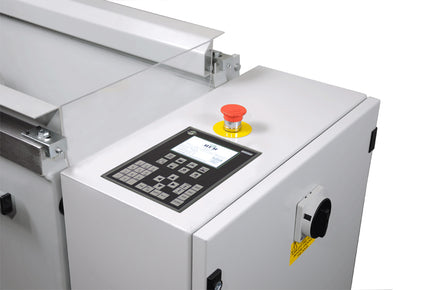

  • Mini-PLC controlling automatic downfeed, automatic working cycle, spark-out and downfeed right or left and right

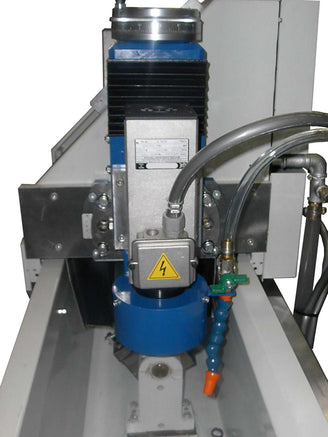

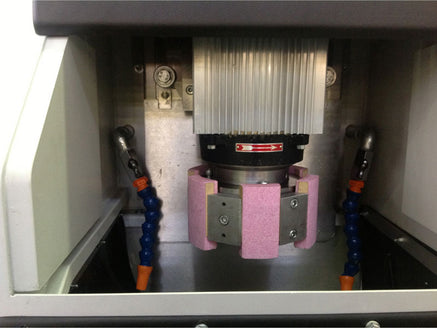

  • Grinding wheel motor 5,5 kW (7,5 HP) with segment grinding wheel Ø 178mm
  • Extremely quiet and vibration-free grinding head
  • Carriage drive via toothed belt for a fluid translation
  • High flow of coolant onto work piece

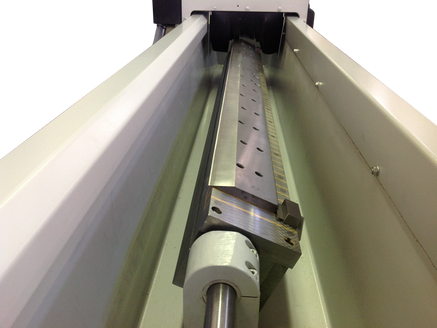

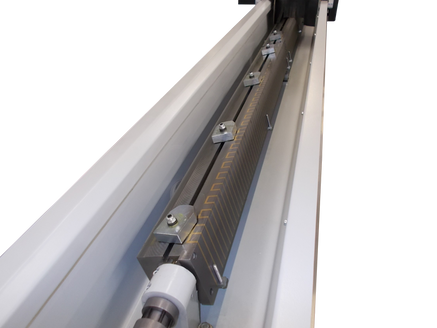

  • Magnetic chuck
  • Variable carriage speed 1-20 m/min
  • Switch for carriage run adjustment
Optional Extras

Optional Extras

  • PLC Siemens
  • Thin polarity magnetic chuck 12/14 mm
  • 4-pole Grinding motor with segments holding ring Ø 250 or Ø 250 mm
  • Grinding wheel dresser
  • Slow carriage speed 0,3 mt/min

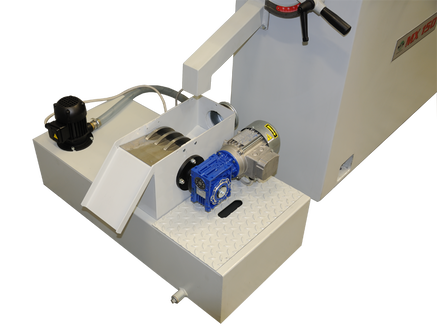

  • Magnetic coolant cleaner with rotating discs
  • Coolant cleaner with paper filter manual or automatic
  • Edge reference bar
  • Angular divisor for magnetic chuck +/-90°
Made in Shefield
Made in Britain
