MVM FX20 15 kW Grinding Machine

Grinder for straight blades

Exclusive UK Supplier

Built to Your Requirements

Delivered Within 12 Weeks

The FX 20 model grinding machine is available with grinding lengths ranging from 1500mm to 7100mm, with even longer lengths available for special grinding applications. Equipped with a high-power grinding wheel motor, the FX 20 is ideal for both surface grinding and knife sharpening. It features a heavy-duty reinforced machine base, providing maximum stability, and comes standard with fully covered upper and side guides.

The FX 20 includes a Siemens PLC that controls the complete grinding program and carriage movement during various stages of the working cycle. This machine is suitable for all industrial straight knives, including chipper knives, granulator blades, veneer knives, guillotine blades, paper knives, and over-sized knives. Additionally, it can be used for surface grinding and complete straight knife manufacturing.

Contact us for more details:

Spec Icon Specifications

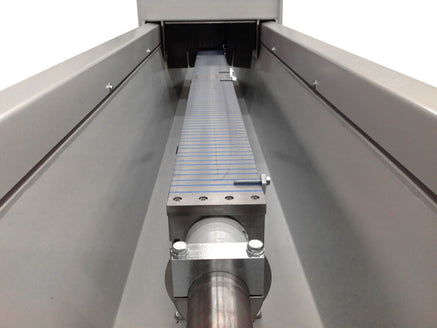

Rotating magnetic chuck from -90° to +90° (width 150 mm)
Angular divisor for magnetic chuck
Grinding motor 15 kW (20 HP)

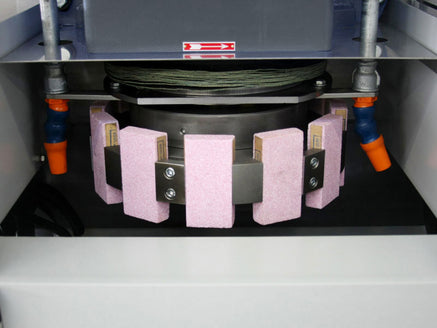

Segment holding ring Ø200 mm
Quick change of the grinding wheel
PLC Siemens SIMATIC S7-1200
Variable carriage speed from 1 to 30 m/min with carriage run adjustment controlled electronically by PLC
Grinding wheel quick up and down approach, and slow down approach
Transversal head translation for perfect aligning of the grinding wheels
Separate coolant collection tank fitted with 140 l/min motor pump
Add Ons Icon Optional Extras

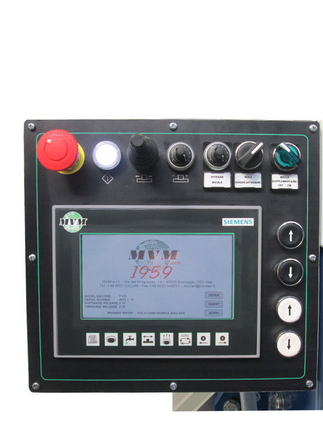

PLC Siemens Touch Screen
Thin polarity chuck 12/14 mm
Magnetic chuck 200 – 250 – 300 mm width
Segment holding ring diam. 250 – 300 – 350 mm
Grinding motor 22 kW (30 HP)
Variable grinding wheel speed
Slow carriage speed 0.3 m/min
RTS Level detector – wheel wear compensation system
Automatic lubrication
Magnetic coolant cleaner with rotating discs
Coolant cleaner with paper filter (automatic or manual)
Additional super-finishing grinding head

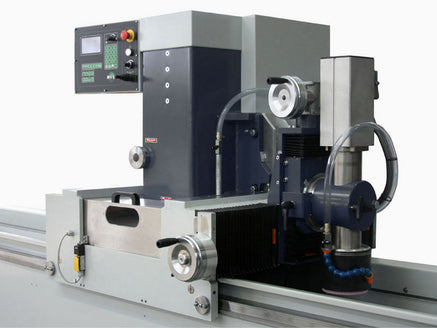

Additional grinding head 3.7 kW (5 HP) automatic or manual
Extraction system
MVM FX20 15 kW Grinding Machine
MVM FX20 15 kW Grinding Machine - Monitor
MVM FX20 15 kW Grinding Machine
MVM FX20 15 kW Grinding Machine
MVM FX20 15 kW Grinding Machine
MVM FX20 15 kW Grinding Machine
MVM FX20 15 kW Grinding Machine
