MVM FX40 30 kW Grinding Machine

MVM FX40 30 kW Grinding Machine

Grinder for straight blades

The FX 40 model grinding machine is available with grinding lengths ranging from 1500mm to 7100mm, with even longer lengths available for special grinding applications. Equipped with a high-power grinding wheel motor, the FX 40 is ideal for major knife and blade manufacturers or companies needing to surface grind large workpieces.

Built to Your Requirements

Delivered Within 12 Weeks

Exclusive UK Supplier

Contact us for more details:

DOWNLOAD BROCHURE
Technical Features

Technical Features

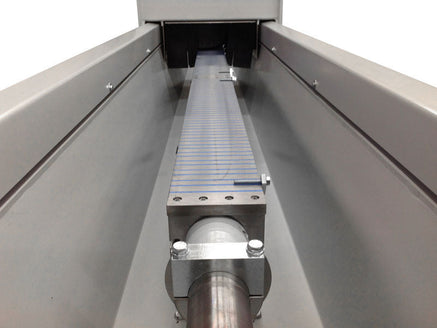

  • Rotating magnetic chuck from -90° to +90° (width 200 mm)

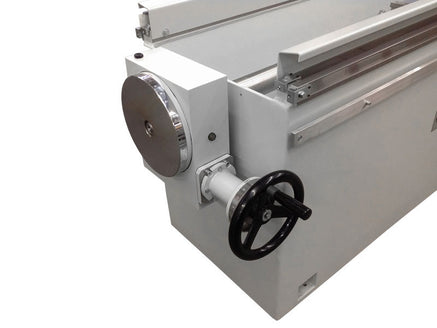

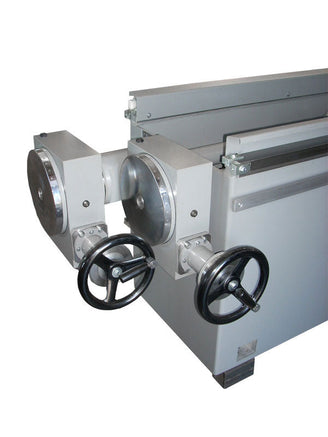

  • Angular divisor for magnetic chuck
  • Grinding motor 30 kW (40 HP)

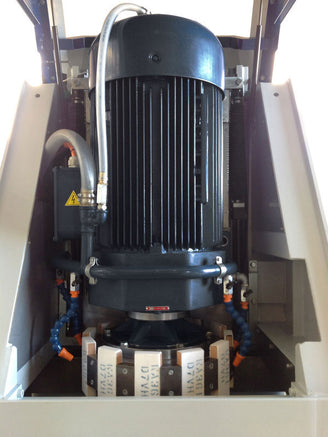

  • Segment holding ring Ø350 mm

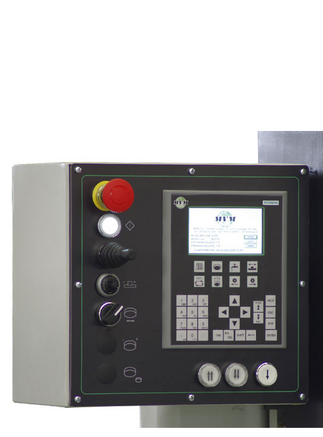

  • Digital programmer PLC SIMATIC S7-1200
  • Automatic lubrication
  • Variable carriage speed from 1 to 30 m/min with carriage run adjustment controlled electronically by PLC
  • Automatic grinding wheel downfeed and fully programmable working cycle by means of a digital programmer (PLC)
  • Grinding wheel quick up and down approach, and slow down approach
  • Transversal head translation for a perfect aligning of the grinding wheels in relation to the work piece
  • Separate coolant collection tank fitted with 180 l/min. motor pump
Optional Extras

Optional Extras

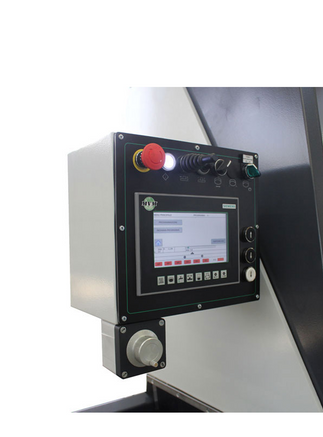

  • PLC Siemens Touch Screen
  • Magnetic chuck with high power polarity
  • Rotating magnetic chuck 250 - 300 – 350 mm width
  • Segments holding ring Ø 400 – Ø450 mm
  • Grinding motor 45 kW (60 HP)
  • Variable grinding wheel speed
  • Slow carriage speed 0,3 mt/min
  • RTS Level detector – wheel wear compensation system
  • Magnetic coolant cleaner with rotating discs
  • Coolant cleaner with paper filter automatic or manual
  • Additional grinding head 3,7 kW (5 HP) automatic or manual
  • Extraction system
