MVM ZXL Grinding Machine

Name: MVM ZXL Grinding Machine
Brand: Saturn Machine Knives
SKU: ZXL
Availability: InStock

Grinder for chipper knives and recycling blades

The ZX-L model grinder is available in two versions, offering grinding lengths of either 1230mm or 1400mm. Equipped with a rotating magnetic chuck, it is ideal for sharpening paper blades, chipper knives used in wood grinders, and recycling blades for plastic grinders with a maximum width of up to 250mm.

Additionally, it can sharpen planer blades, shaped carbide knives when using the optional high-power magnetic table, and disposable Tersa-type blades with the special clamping tool.

Built to Your Requirements

Delivered Within 12 Weeks

Exclusive UK Supplier

Technical Features

Steel machine tank
Linear carriage guides with recirculating ball bearings

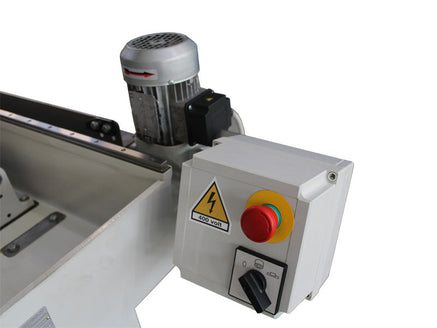

Grinding motor 1,5 kW (2 HP) - 2800 RPM

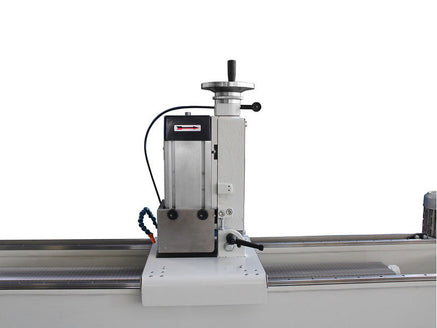

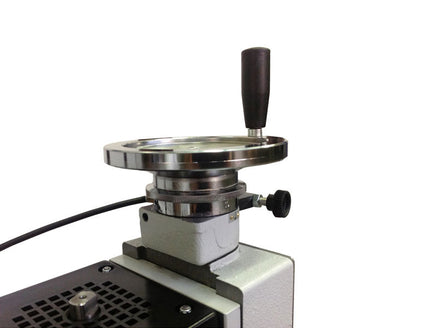

Automatic downfeed grinding head with automatic stop at preset height
Tilting head to grind hollow surfaces

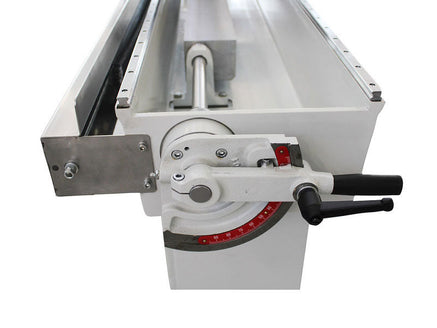

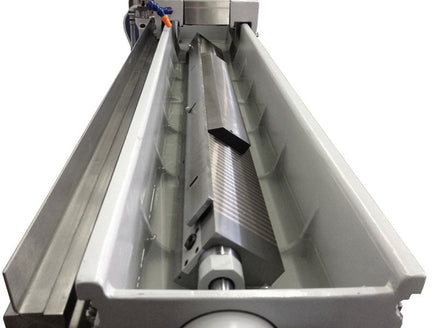

90° rotating knife-mounting chuck
Coolant pump
Chain driven carriage

Optional Extras

Base
Grinding motor 2,2 kW (3 HP )- spindle speed 2800 RPM with Ø150 mm cup grinding wheel
Variable carriage speed 1-11 m/min
Edge reference bar

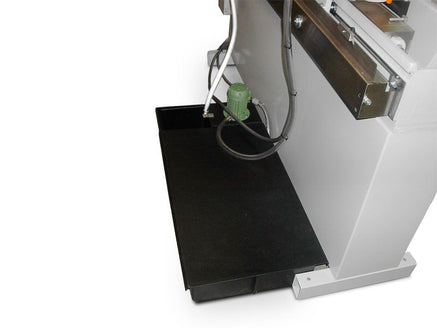

External tank with additional pump
Switch run adjustment
Camping device for Tersa, Centrofix, Terminus, Kanefusa, Sinus, Weinig knives

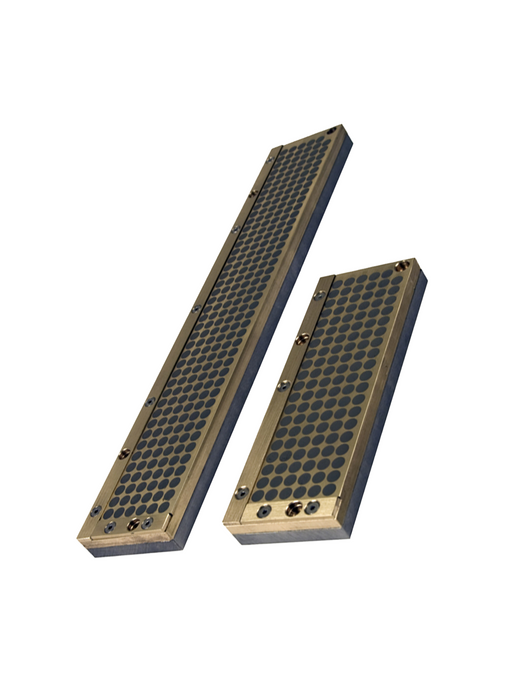

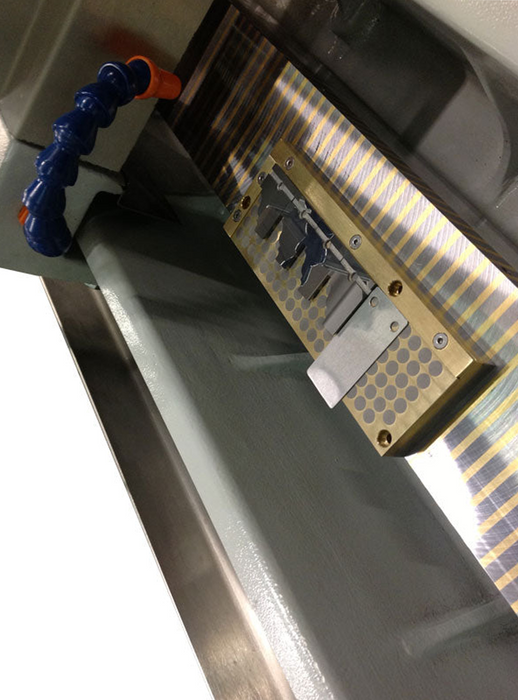

Magnetic chuck for hard metal inserts
